This is a 35mm diameter permanent magnet stepper motor with gear ratio gearbox.
This is an uni-polar motor with 4 phases.
With low price and reliable quality, this motor is widely used in home appliance industries, such as air conditioning, smart home system, smart toilet and so on.
We provide customization service on gear ratio, coil resistance, phase number, and connector types.
Customers can customize motor’s parameter based on specific requirement, we have 43.75:1 /85:1 gear ratio for option.
Customization options:
Model No.: 35BYJ46
Step angle:(1-2phase driving) 7.5°/85; (2-2 phase driving) 15°/step
Gear ratio: 43.75:1 / 85:1
Customizable items:
Voltage:5~24V; gear ratio, gear material, output shaft, motor’s cap design customizable
Voltage (V) | Resistance (Ω) | Pull-in torque 100PPS (mN*m) | Detent Torque (mN*m) | Unload pull-in Frequency (PPS) | Step Angle (1-2phase) |
12 | 110 | ≥147 | ≥78.4 | ≥350 | 7.5°/85 |
12 | 130 | ≥147 | ≥78.4 | ≥350 |
12 | 200 | ≥78.4 | ≥39.2 | ≥350 |
12 | 150 | ≥78.4 | ≥39.2 | ≥350 | 7.5°/43.75 |

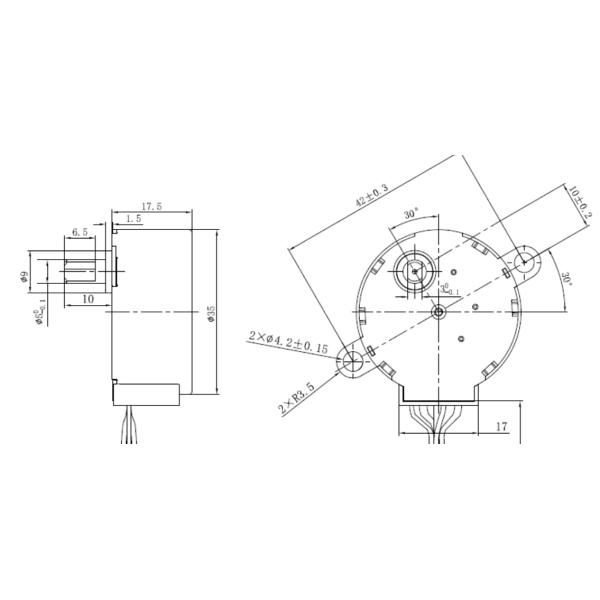

Design drawing(Unit:mm)
Technical Features
Application Highlights
HVAC/R Valve Actuation Winding possibilities – Bipolar
Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless
Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost
Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary
